Solutions

SafeGauge

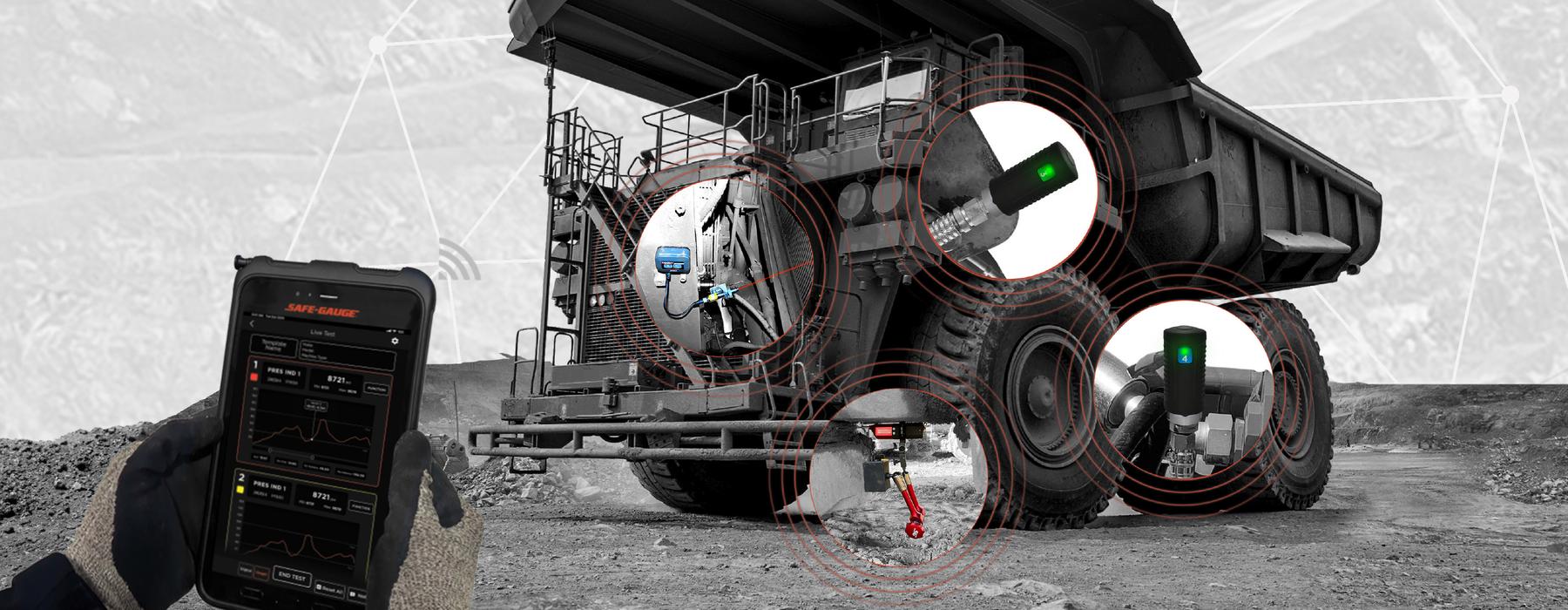

Eliminate Live Work with SafeGauge. SafeGauge specialises in supplying innovative safety solutions, and has quickly become a trusted provider of cutting-edge gauge technology, ensuring precision and reliability in monitoring critical processes. Enhance your workplace safety and productivity with SafeGauge.

Order Now

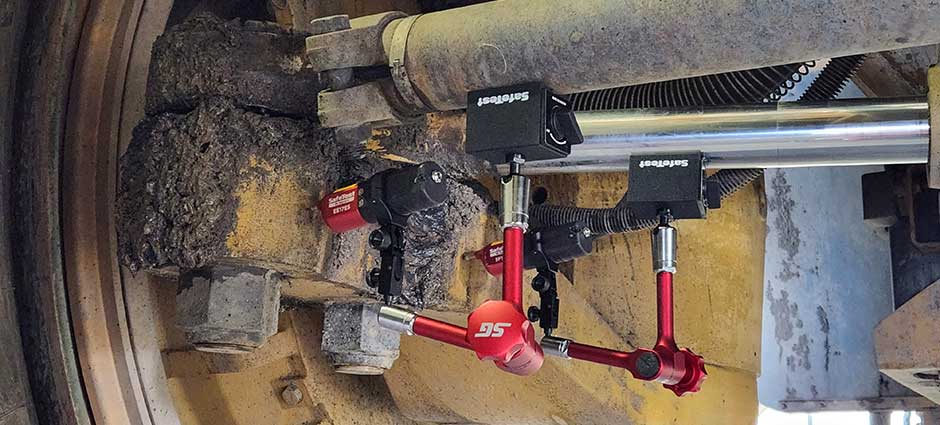

SafeTest Dial Indicator

The SafeTest DI Series is designed to remotely measure clearances, tolerances and wear on machine components safely and efficiently, out of the line of fire. Capable of measuring up to 10mm (0.39inch) of displacement with an accuracy of 0.01mm (0.0004inch) and wireless connectivity of up to 100m (328ft) away.

Get A Quote

SafeTest Tachometer

The SafeTest TM Series enables completely wireless measurement of RPM removing technicians from the live work area while measuring the speed of fans, pumps, drill heads and other rotating machinery components. Designed to achieve fast, accurate measurements in the harshest mining environments while out of harm’s way.

Get A Quote

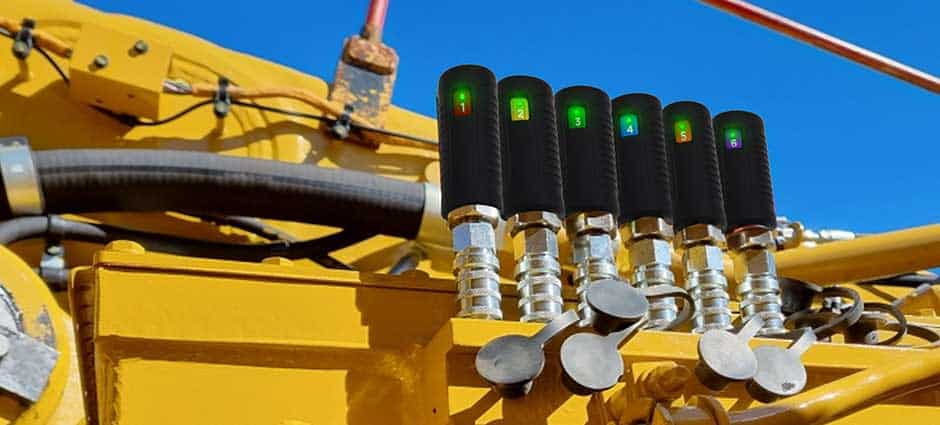

SafeTest Pressure Transducer

The SafeTest PT Series allows technicians to safely and efficiently monitor high-pressure hydraulic and pneumatic systems up to 100m (328ft) away. Available in various sizes, these kits can also be configured with a variety of pressure ranges to suit every application. Pair your kit with our wide range of accessories such as specialised fittings and adaptors, extension hoses and magnetic bases to enable completely hands-free pressure testing.

Get A Quote

SafeTest Push Rod

The SafeTest PR Series provides technicians with a way to get displacement measurements quickly and safely between two fixed points. Designed for measuring ball joints, lateral movement in pins and bearings, and other applications where a Dial Indicator is less suited. The versatile articulating magnetic mount allows for rapid setup time and flexibility in mounting locations.

Get A Quote

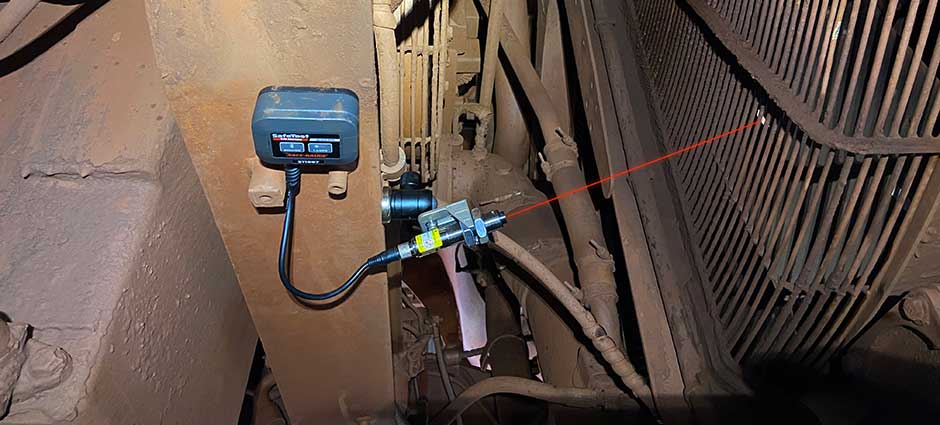

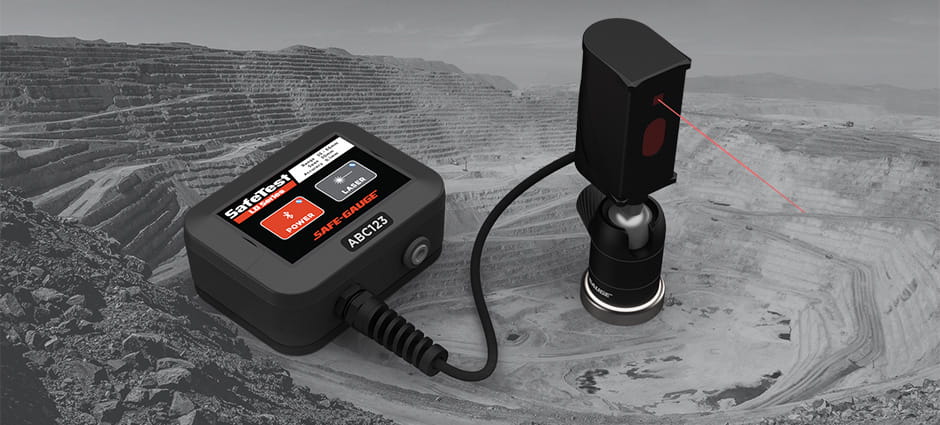

SafeTest Laser Displacement

The SafeTest LD Series enables completely wireless non-contact measurement of moving parts, removing technicians from the live work area while measuring the wear in machinery components such as slew rings, ball joints and pins. This rugged, non-contact laser displacement sensor is designed to achieve fast, accurate measurements in the harshest mining environments while out of harm’s way.

Get A Quote

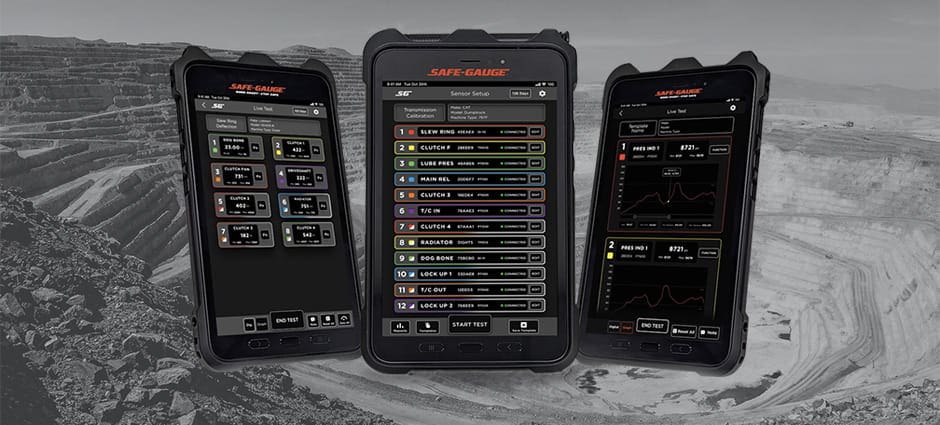

MultiTool Pro

The SafeGauge MultiTool Pro takes Elimination of Live Work (ELW) to the next level – allowing maintenance technicians to seamlessly connect and monitor up to 12 SafeGauge sensors simultaneously, from up to 100m (328ft) away. The intuitive touchscreen interface comes packed with a host of features, including data-logging and graphing, with the ability to generate, export and share comprehensive reports.

Get A Quote

Previous
Next

Pressure Transducer

Which pressure transducer is right for you?

SafeGauge Pressure Transducers are available in a variety of pressure ranges to suit your specific needs.

Which Pressure Transducer Is Right For You

When purchasing a SafeGauge Pressure Transducer Kit, you have complete choice over the transducers which are included in your kit so that you can find the best combination for your team’s pressure testing needs.

What’s even better – a custom selection comes at no extra cost!

SafeGauge offers 5 transducer variants, with each transducer being accurate to 0.2% of its full pressure scale. See the below breakdown of each of our transducers.

How to choose your sensor:

  • Consider, the type of equipment you will be using them on and the maximum pressures of that equipment;
  • the testing procedures you will be completing; and
  • the accuracy level required.

If you are unsure, you should consult the machinery OEM or the equipment’s maintenance manual to confirm the maximum pressures required to be tested.

SafeGauge’s Wireless MultiTool will notify you if the maximum pressure is being exceeded. If the Pressure Transducer is subject to overpressure, it can result in damage to the sensor membrane and impact performance of the transducer. SafeGauge’s product warranty does not cover damage caused to the transducer by improper use.
